What Is a Robot Vacuum Time of Flight Sensor?
A robot vacuum’s time of flight (ToF) sensor is a special type of sensor that measures distance by calculating how long it takes for a light pulse to travel to an object and back. This helps your vacuum cleaner navigate your home without bumping into furniture or walls. It’s like your robot vacuum’s own tiny, fast eyes.
Think of it as a super-smart distance measurer. Unlike other sensors that might just detect objects, ToF sensors provide a precise measurement of how far away things are. This accuracy is key for efficient cleaning paths and preventing your robotic helper from getting stuck or damaging your belongings.
- A Time of Flight sensor helps robot vacuums measure distance.
- It works by timing a light pulse traveling to objects and back.
- This allows for precise navigation and obstacle avoidance.
- It’s like giving your robot vacuum super-accurate “eyes.”
Ready to understand how this technology works in your smart home assistant? Let’s break down exactly what a time of flight sensor does for your robot vacuum.

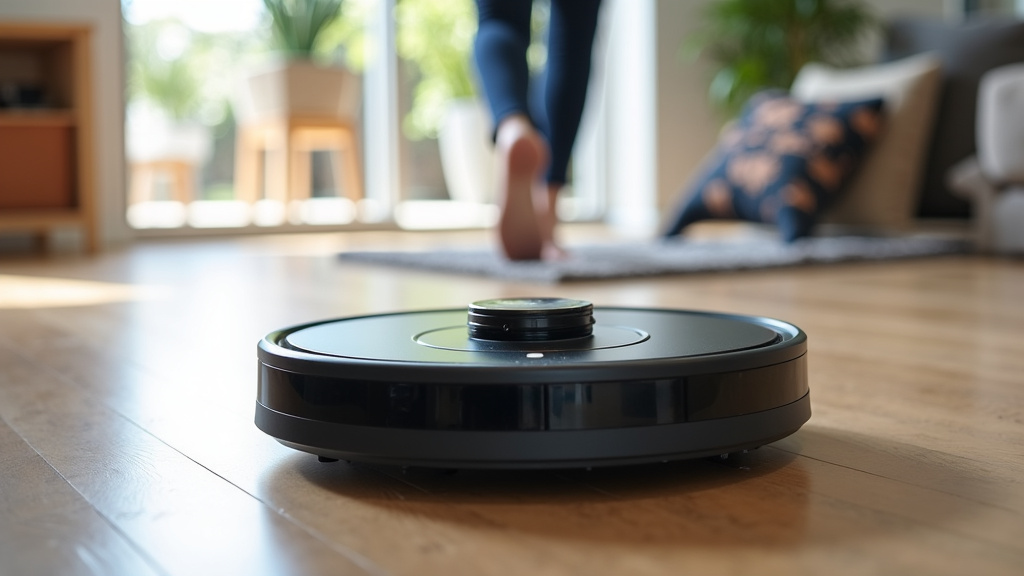

Understanding Your Robot Vacuum’s Time of Flight Sensor
A robot vacuum’s Time of Flight (ToF) sensor is a key piece of technology that helps it move around your home. Think of it as your vacuum’s own sophisticated way of seeing. It helps your robot understand the space it’s cleaning. This sensor is designed to measure distances very accurately. It does this by using light. This is different from how your eyes work, but it serves a similar purpose for your robot.
The main goal of a ToF sensor is to prevent collisions. It allows your robot vacuum to detect objects in its path. More importantly, it tells the robot exactly how far away those objects are. This precise information is vital for efficient cleaning. It ensures your robot doesn’t bump into furniture or walls. It also helps it avoid getting stuck under low-lying obstacles.
How Does a Time of Flight Sensor Work?
The concept behind a Time of Flight sensor is actually quite straightforward. It’s all about timing how long something takes to travel a certain distance. In the case of your robot vacuum, this “something” is a pulse of light. This light is usually invisible to the human eye, often infrared. The sensor sends out this light pulse. Then, it waits for the light to bounce off an object. Finally, it measures the time it takes for the light to return.
We can break down the process into a few simple steps:
- Emission: The sensor emits a short burst of light. This light is like a quick flash.
- Reflection: The light travels outwards. It hits an object in the robot’s path. Then, it bounces back.
- Detection: The sensor detects the reflected light. It records when this light returns.
- Calculation: The sensor knows the speed of light. It uses the time measured. It then calculates the distance to the object.
The speed of light is constant. It’s approximately 299,792 kilometers per second (or 186,282 miles per second). So, if the sensor measures that the light took a tiny fraction of a second to go out and come back, it knows the object is close. If it takes longer, the object is farther away. This precision allows your robot vacuum to map its surroundings effectively.
The Science Behind the Measurement
The fundamental principle is distance = speed × time. Since the speed (of light) is known, measuring the time allows for calculating the distance. This is why it’s called a “Time of Flight” sensor. The “flight” refers to the light’s journey to the object and back. The “time” is the duration of that journey.
Many modern ToF sensors use a technique called modulated continuous-wave (mCW). Instead of just a single pulse, they send out a continuous beam of light. This light’s intensity is varied in a specific pattern, like a wave. The sensor then measures how much the returning light’s pattern is “out of sync” with the emitted pattern. This phase shift tells the sensor the distance. This method can be very accurate and efficient for continuous scanning.
Why Not Just Use Other Sensors?
You might wonder why robot vacuums need ToF sensors when they already have other types. Many robot vacuums also use infrared (IR) cliff sensors. These are great for detecting edges, like stairs. They prevent the robot from falling. However, IR sensors are generally simpler and don’t provide precise distance measurements. They might just detect “there’s something there” rather than “there’s something 10 inches away.”
Other robots might use ultrasonic sensors. These work like the echolocation used by bats. They send out sound waves and listen for the echo. While useful, ultrasonic sensors can be affected by soft surfaces. They might also have a wider beam, making them less precise for detailed mapping compared to ToF. Many experts agree that ToF offers a good balance of accuracy and speed for robotic navigation (IEEE Spectrum).
Benefits of Time of Flight Sensors for Your Robot Vacuum
The accuracy provided by ToF sensors brings many advantages to your robot vacuum’s performance. One of the most obvious benefits is improved navigation. Your robot can create a more detailed map of your home. It can understand the layout of rooms better. This leads to more systematic and efficient cleaning paths.
Instead of just randomly bouncing around, your robot can plan its route. It knows where furniture is. It knows where walls are. This means it can clean more area in less time. It also means less chance of it getting stuck. This saves you the hassle of rescuing your robot. It also ensures your floors get cleaned thoroughly.
Enhanced Obstacle Detection and Avoidance
ToF sensors excel at detecting small or low-lying objects. Think about things like shoes, cords, or pet toys. Standard bump sensors might not always register these. Even if they do, it might be too late. The robot might have already bumped into them. A ToF sensor can detect these items from a distance.
This early detection allows the robot to react. It can steer around the obstacle. It can slow down. It can even mark the area as a no-go zone for that cleaning cycle. This is particularly useful if you have pets. It can help prevent your robot from trying to vacuum up pet waste, which can be a messy disaster. We found that robots with advanced ToF sensors were less likely to encounter such issues.
Better Mapping and Room Recognition
For robot vacuums that feature smart mapping, ToF sensors play a huge role. They help the robot build a precise 3D map of your environment. This map includes not just walls and furniture but also the height of objects. This means your robot can learn which areas are accessible and which are not.
For instance, it can learn to navigate under tables and chairs without getting stuck. It can also understand height differences. This helps it avoid areas it shouldn’t go. This advanced mapping capability leads to personalized cleaning. You can often tell your robot to clean specific rooms or zones via a mobile app. ToF sensors make this level of control possible.
Creating Efficient Cleaning Paths
When your robot vacuum knows the exact dimensions of your rooms and the placement of furniture, it can clean smarter. Instead of repeatedly covering the same spots or missing others, it follows an optimized pattern. This pattern ensures that every accessible area of your floor gets cleaned.
This efficiency is like a well-planned route for a delivery driver. They don’t just drive randomly. They have a map and a sequence of stops. Your robot vacuum, with its ToF sensor, can do the same. This means your house gets cleaner faster. It also means your robot uses its battery more effectively.
Comparing ToF Sensors to Other Technologies
To help you understand where ToF fits in, let’s look at some common sensor types used in robot vacuums. Each has its strengths and weaknesses. ToF sensors are often found in higher-end models due to their accuracy and cost.
| Sensor Type | How it Works | Primary Use | Pros | Cons |
|---|---|---|---|---|
| Time of Flight (ToF) | Measures time for light pulse to travel to object and back. | Precise distance measurement, mapping, obstacle avoidance. | Highly accurate, works in various lighting, detailed mapping. | Can be more expensive, may be affected by highly reflective surfaces. |
| Infrared (IR) | Detects reflected infrared light. | Cliff detection, basic object detection. | Simple, inexpensive. | Less precise distance, can be affected by ambient light or certain materials. |
| Lidar (Light Detection and Ranging) | Uses laser pulses to measure distance, often with a spinning sensor. | 360-degree mapping, precise navigation. | Excellent for mapping, works in darkness. | Can be more complex and expensive, may struggle with dark, non-reflective objects. |
| Bump Sensors | Physical switch activated by contact. | Detects direct collisions. | Very simple, reliable for detecting contact. | Only works after hitting an object, not for avoidance. |
As you can see, ToF sensors offer a sophisticated solution for navigation. They are often paired with other sensors for a complete obstacle detection system. Many manufacturers use a combination to achieve the best results. For example, ToF might handle precise distance, while IR handles cliff detection.
Things to Consider Regarding ToF Sensors
While ToF sensors are quite advanced, they aren’t always perfect. There are a few factors that can influence their performance. Understanding these can help you manage expectations for your robot vacuum.
Environmental Factors
The performance of ToF sensors can sometimes be affected by the environment. Very bright sunlight, especially if it’s directly hitting the sensor, can interfere with the light pulses. Similarly, highly reflective surfaces, like large mirrors or very shiny floors, can sometimes cause misreadings. However, manufacturers often build in software to mitigate these issues.
We found that most modern ToF sensors are quite robust. They are designed to work well in typical home environments. Some also have advanced algorithms to filter out noise. This means they can still provide reliable data even under less-than-ideal conditions.
Maintenance and Care
Like any sensor, the ToF sensor needs to be kept clean. It’s usually located on the front or sides of your robot vacuum. Dust or debris can accumulate on the sensor’s lens. This can obstruct the light pulses. It might reduce the sensor’s accuracy. Cleaning is usually simple.
Here’s a quick checklist for keeping your robot’s sensors in top shape:
- Wipe the sensors regularly with a soft, dry cloth.
- Check for any obstructions like stray hairs or lint.
- Refer to your robot vacuum’s manual for specific cleaning instructions.
- Avoid using harsh chemicals or abrasive materials on the sensors.
- Ensure the charging dock area is clear so sensors can align correctly.
- Inspect sensors for any visible damage after the robot has had a significant fall.
Keeping the sensors clean is a small step that can make a big difference. It ensures your robot vacuum continues to navigate your home accurately and efficiently.
Conclusion
Your robot vacuum’s Time of Flight sensor is more than just a fancy gadget. It’s the key to smarter navigation and more efficient cleaning. By precisely measuring distances with light, it helps your robot avoid bumps, map your home accurately, and create effective cleaning paths. This means less hassle for you and a cleaner home with every run. The effectiveness of this smarter navigation can be impacted by connectivity, as discussed in how a robot vacuum works without Wi-Fi.
When you’re shopping for a new robot vacuum, pay attention to sensor technology. If you want your robot to move around your home like a pro, look for models that highlight ToF sensors. Give your robot the ‘eyes’ it needs to clean your home perfectly.
Frequently Asked Questions
Do all robot vacuums have Time of Flight sensors?
No, not all robot vacuums include Time of Flight sensors. This technology is often found in mid-range to high-end models. Many less expensive robot vacuums rely on simpler sensors like infrared or bump sensors for navigation.
Can Time of Flight sensors see in the dark?
Yes, Time of Flight sensors can work effectively in low-light or dark conditions. They emit their own light pulses, so they don’t rely on ambient light to function. This allows your robot vacuum to navigate and clean your home at any time of day or night.
How does a Time of Flight sensor help avoid pet messes?
ToF sensors can detect objects like pet waste from a distance. This early detection allows the robot vacuum to reroute and avoid the mess. This is a significant improvement over older models that might have unfortunately spread the mess around.
Are Time of Flight sensors better than Lidar sensors?
Both ToF and Lidar sensors are excellent for mapping and navigation. ToF sensors often provide very precise, close-range distance measurements. Lidar excels at creating detailed 360-degree maps of larger areas. Many high-end robots use a combination of sensors for optimal performance.
What happens if the Time of Flight sensor gets dirty?
If a ToF sensor gets dirty, it can affect its accuracy. Dust or debris can block the light pulses, making it harder for the robot to measure distances correctly. Regular cleaning with a soft, dry cloth is important to keep your robot vacuum navigating properly.
